Segment Ball Valve Control V Type Ball Valve

Short Description:

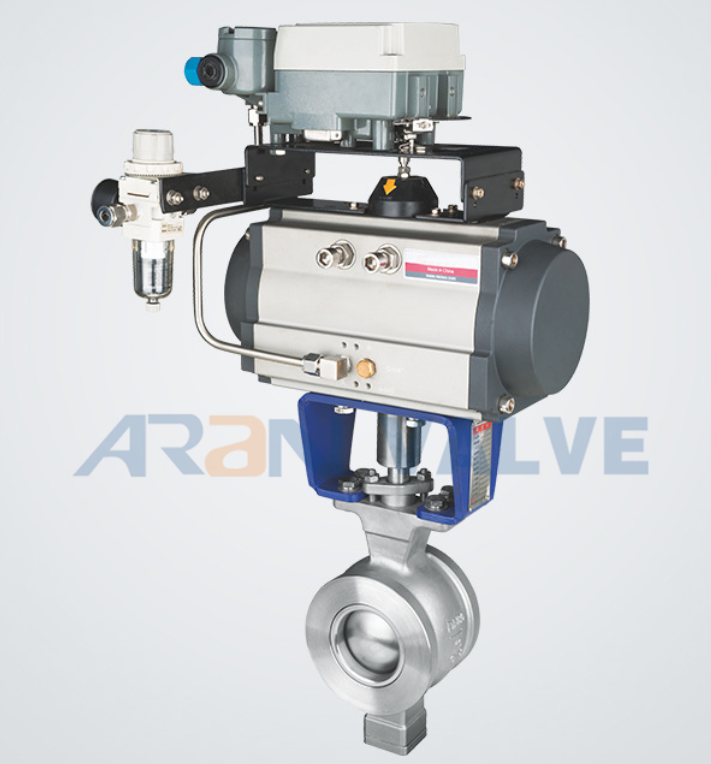

Production Range Pneumatic V Port Segment Ball Valves
Size NPS 2”~20” (50mm~500mm)
Pressure ASME Class150~600LBS (PN16~PN64)
Material Carbon steel/Stainless steel/Alloy steel/Special alloys etc.
Production Standards API/ANSI/ASME/EN/DIN/BS/GOST

Design Feature

Specification

Product Tags

Product Description

V Port ball valve is also called Segmented ball valve which has the ball V notch type designed and realizes body sealing in V type, very precise and sharp in flow control and shut off medium. It is very good choice for medium like fiber slurry or solid particles.

V port ball valve features:

The valve ready ISO 5211 mounting pad for actuators like pneumatic, electric, worm gear etc.
The body is one piece design less body leaks compared with slip body.
The ball is specially V port designed has strong cutting effect and tight sealing performance on the medium.
and can adjust the flow characteristics of the medium in equal proportions.
The V port ball valve allows precisely control medium.
V port ball valve has the Equal Percentage Flow Characteristic.

Different types of V port ball valve

flange v port ball valve

Control V type ball valve
Flange ends

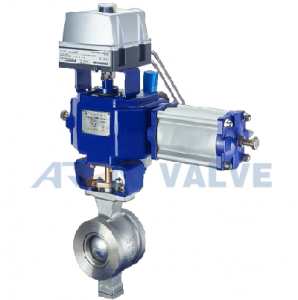

wafer v port ball valve

Segment ball valve
Wafer ends

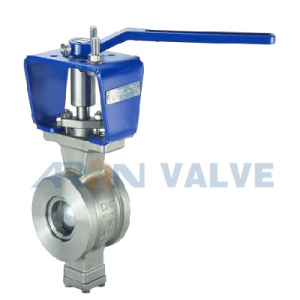

Manual v port ball valve

Lever operation with ISO top flange ready


  • Previous:
  • Next:

  • Production Range V Port Segment Ball Valves
    Material type Carbon steel/Stainless steel/Alloy steel/Special alloys etc.
    Material code WCB, LCB, CF8, CF8M, CF3, CF3M, A105, LF2, F304, F316, F304L, F316L
    Seat type Soft Seat  PTFE, RPTFE, DEVLON, PEEK
    Metal seated Hard coating material like CRC/TCC/STL6/Ni60/STL
    Size NPS 1”~12” (25mm~300mm)
    Pressure ASME Class150~600LBS (PN16~PN64)
    Operation Manual, Worm Gearbox, Pneumatic actuator, Electric actuator, Hydraulic-electric actuator
    Working Medium WOG
    Working temp. Max 350℃
    Production Standards API/ANSI/ASME/EN/DIN/BS/GOST
    Design& MFG code API 608/API 6D/ISO17292/ ISO 14313/ASME B16.34/BS5351
    Face to Face ASME B16.10, EN558
    End Connection FLANGE RF/RTJ ASME B16.5/EN1092-1/GOST 33259
    Test & Inspection API 598, API 6D, ISO5208/ISO 5208/EN12266/GOST 9544
    Basic design
    FIRE SAFE API 607
    ANTI STATICS API 608
    Stem feature Anti blow out proof
    Ball type Side entry
    Floating ball type one way sealing
    Trunnion ball type one way sealing
    Bore type V port
    Bonnet Construction Integral one piece body
    Optional customize NACE MR0175, MR0103, ISO 15156 compliance
    ISO 5211 MOUNTING PAD
    Limit Switch
    Lock device
    ESDV service suitability
    Documents Document on delivery
    EN 10204 3.1 MTR Material test report
    Pressure inspection report
    Visual and dimension control report
    Product warranty
    Valve operation manual
    Product of origin
