NAB/Nickel Aluminum Bronze Ball Valves ASTM B148 C95800, C95500 etc

Short Description:

Production Range

Nickel Aluminum Bronze Ball Valves

Size NPS 1/2”~24” (15mm~600mm)
Pressure ASME Class150~2500LBS (PN16~PN420)
Production Standards API/ANSI/ASME/GOST/DIN/EN
End Connection ASME B16.10/EN 558
Test & Inspection API 598, API 6D, ISO5208
Material supply range C95800/C95500/C83600 etc

Design Feature

Specification

Product Tags

Nickel Aluminum Bronze Ball Valves

ARAN delivering worldwide ranges of of Nickel Aluminum Bronze ball valves. Nickel Aluminum Bronze valves available in both cast and forging product forms, the usual production material codes: ASTM B148 C95800, C95500. The size from 1/2”~24” and pressure 150LBS~600LBS.

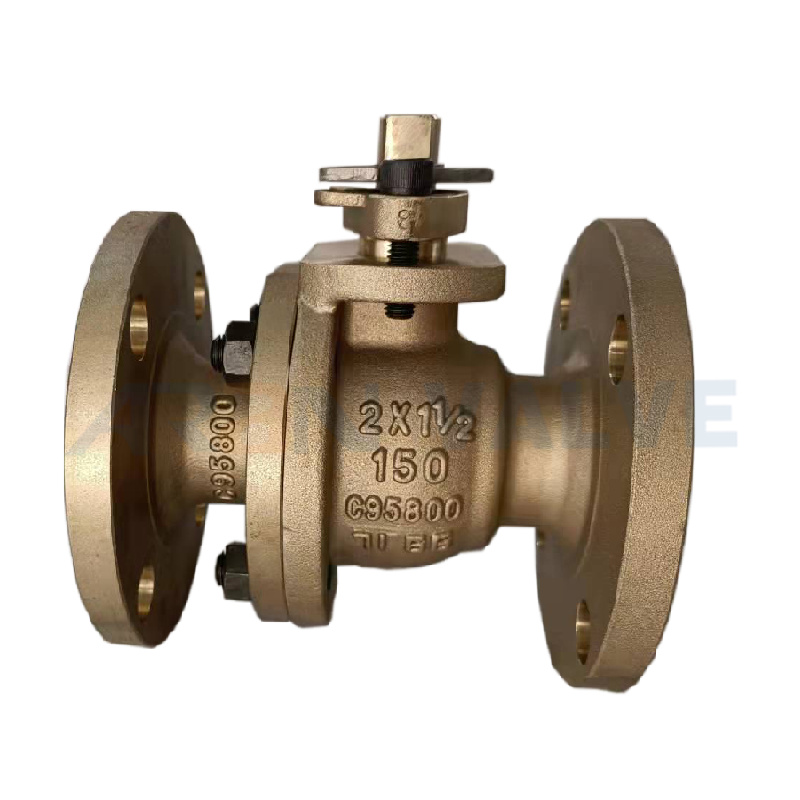

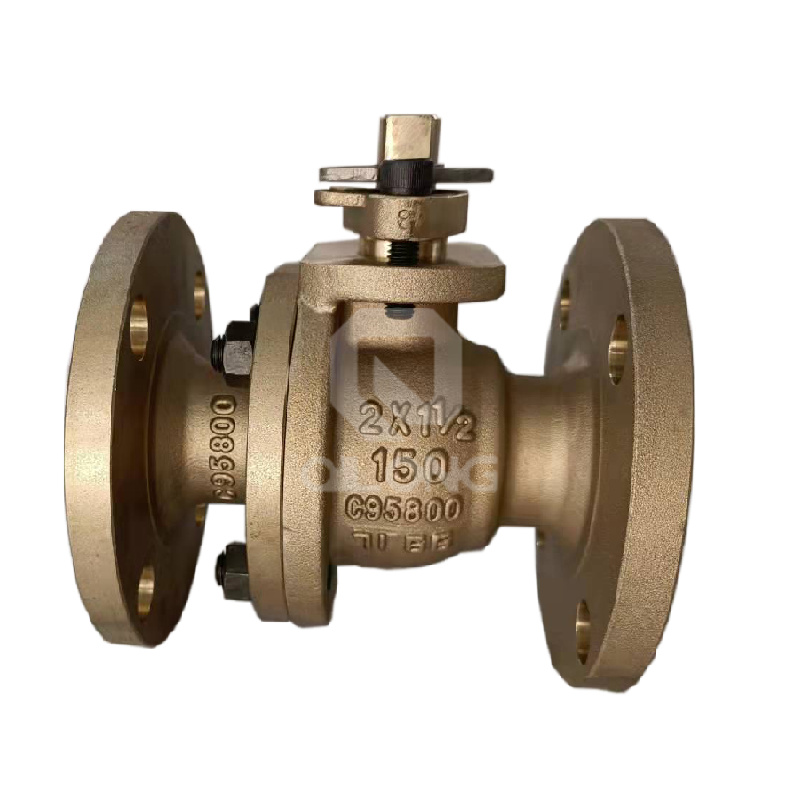

● Nickel Aluminum Bronze BALL VALVE CAST STEEL 2PC BODY FLOATING BALL
● Nickel Aluminum Bronze BALL VALVE CAST STEEL 2PC BODY TRUNNION BALL

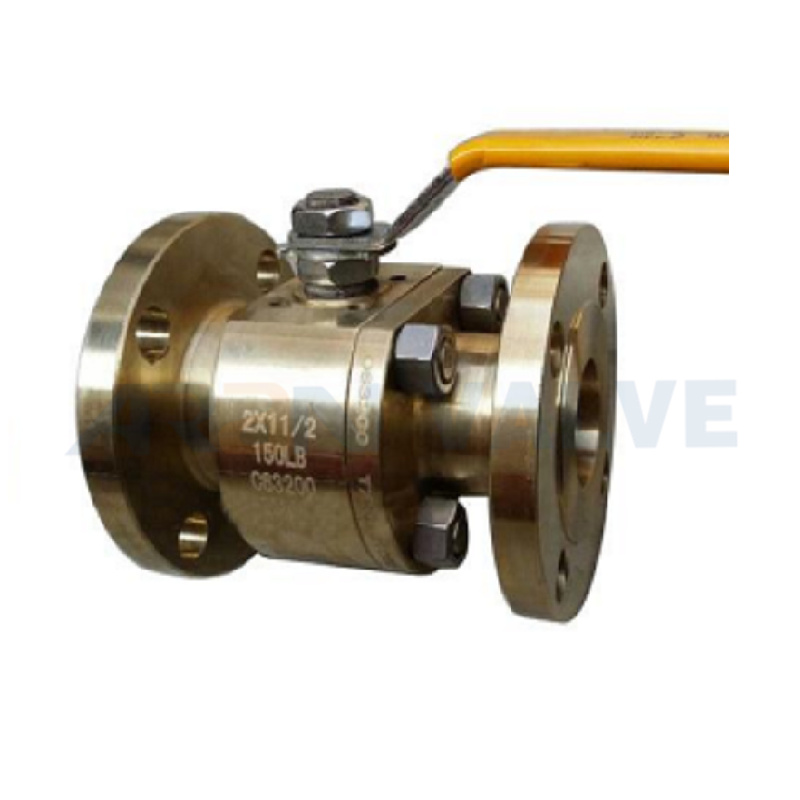

● Nickel Aluminum Bronze BALL VALVE FORGED STEEL 2PC BODY FLOATING BALL
● Nickel Aluminum Bronze BALL VALVE FORGED STEEL 3PC BODY TRUNNION BALL
● Nickel Aluminum Bronze BALL VALVE 3WAY TYPE
● Nickel Aluminum Bronze BALL VALVE CROGNIEC TYPE

Nickel Aluminum Bronze also abbreviated NAB, NiAlBr.
Nickel Aluminum Bronze (NAB) is important demanding material specially in seawater applications for their super corrosion resistance and wearing ,excellent physical, mechanical, anti-corrosive, properties.


  • Previous:
  • Next:

  • Material type: Nickel Aluminum Bronze ASTM B148 C95800 body and ball, Stem ASTM B150 C63200, Seat RPTFE,bolt&nut B8M/8M.

    Size

    NPS 1/2”~24” (50mm~600mm)

    Pressure

    ASME Class150~600LBS (PN16~PN100)

    End Connection

    RF, RTJ, BW,SW,NPT

    Operation

    Manual, Worm Gearbox, Pneumatic actuator, Electric actuator,Hydraulic-electric actuator
    Bore type Full bore or Reduced Bore
    Bonnet Construction Bolted bonnet
    Ball type Floating or Trunnion mounted
    Seat type Soft seated
    Stem feature Anti blow out proof
    FIRE SAFE API 607
    ANTI STATICS API 608
    Optional customize MR0175/ISO 15156 compliance
    ISO 5211 MOUNTING PAD
    Limit Switch
    Lock device
    ESDV service suitability
    Double bleed and block for Trunnion ball
    Bidirectional sealing to Zero leakage
    International code API/ANSI
    Material code ASTM B148 C95800 body and ball, seat RPTFE
    Design& MFG code API 608/API 6D/ ISO 14313
    Face to Face ASME B16.10,EN558
    End Connection FLANGE RF/RTJ, ASME B16.5,EN1092-1/GOST 33259 ;BUTT WELD BW ASME B16.25
    Test & Inspection API 598, API 6D,ISO5208,EN12266
