- ARAN produce the multi-port ball valve in three way or four way port. Such ball valve is designed in reliable sealing and smooth flow port switch so as to ensure accuracy of opening and closing through small fluid pressure loss and stable flow port. According to the types of flow port, the valve can be classified into L pattern, T pattern and LL/X pattern.
- Three way ball valve T- port and L- port pattern
- Four way ball valve LL port, T- port and L- port pattern, Straight Port pattern
Multi-port ball valve advantage- Multi valve integrated in one compact valve
- Compact design save assembly space and cost
- Quick and Simple Switch flow direction
- Low pressure drop and low operating torque
- Soft seat positive seat sealing and easy maintenance
- Three way ball valve T- port pattern and L- port pattern
- The three-way ball valve divides in two port types: T-type and L-type. There is no appearance difference between the three-way ball valve T-pattern and the L-pattern, but the structure of the valve inside ball port is different. The T-type can connect three orthogonal pipes flow with each other and block the third channel, and play the role of diversion and confluence. The L type can only connect two pipes flow that are orthogonal to each other, and cannot maintain the interconnection of the third pipe flow at the same time, and only plays a distribution role.
- T Pattern Three-way Ball Valve VS L-Pattern Three-way Ball Valve
- T-Pattern Three-way Ball Valve-four types of pipe flow diverse
- U-L-Pattern Three-way Ball Valve-two types of pipe flow diverse
- The "T" pattern three way ball valve is used for switching,converging and diverging medium flow direction.The "T" pattern ball channel can make three channels connect with each other or two of them with each other. Therefore, users shall make detailed descriptions to the service requirements when selecting and ordering, so that we can make designs and configurations correctly.

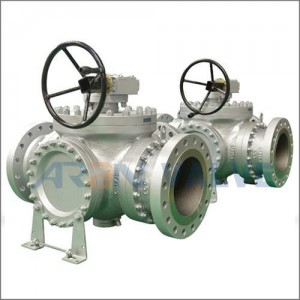

- Four-way Ball Valve also called X port or "LL" port four way ball valve
- The "LL" port pattern four-way ball valve is provided with four seats to realize switching from service condition a to service condition b. It can simultaneously switch the flow direction of two media,which realizes the effect of multiple functions in one valve with convenience and swiftness.
- Four way ball valve X-shape / LL shape
- The four-way ball valve is a ball valve with an X-shaped vertical port. Its characteristic is that the two port of the ball are arranged in an X-shape, and the diameters of the four channels are evenly distributed on the equatorial circumferential section of the sphere. When the sphere rotates 90 degrees clockwise, it can make the relative two ports can connect with each other.
