Modular Double Block and Bleed Ball Valve

Short Description:

Production Range Trunnion DBB ball valves
Size NPS 2″~24″ (50mm~600mm)
Pressure ASME Class150~1500LBS (PN16~PN250)
Material A105, LF2, F304/F304L, F316/F316L, 16MN, 20 ALLOY, F51, F91, C95800 ETC.
Production Standards API/ANSI/ASME/EN/DIN/BS/GB/GOST
Design& MFG code API6D/ API608/ ISO17292
Test & Inspection API 598, API 6D, ISO5208/ISO 5208/EN12266/GOST 9544

Design Feature

Specification

Product Tags

DBB ball valves /Double block and bleed ball valves/Double isolation and bleed ball valves /DBB dual ball valve

ARAN has the DBB ball valves /Double block and bleed ball valves/Double isolation and bleed ball valves /DBB dual ball valve in ranges design,material, size, pressure and ends connections, providing reliable isolation solution for use in upstream, midstream and downstream in oil and gas, petrochemical, transmission and storage applications.

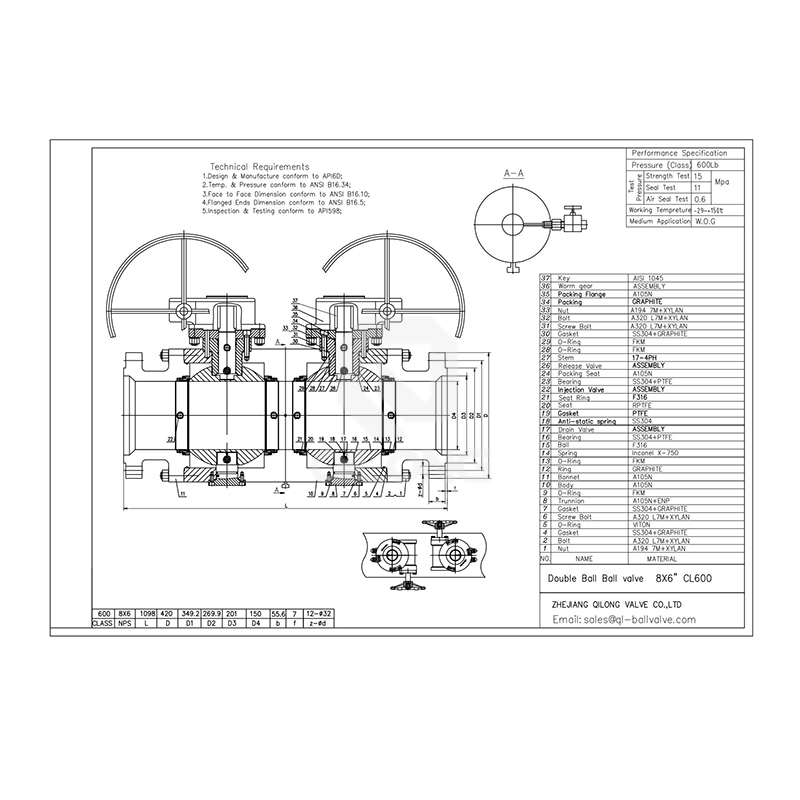

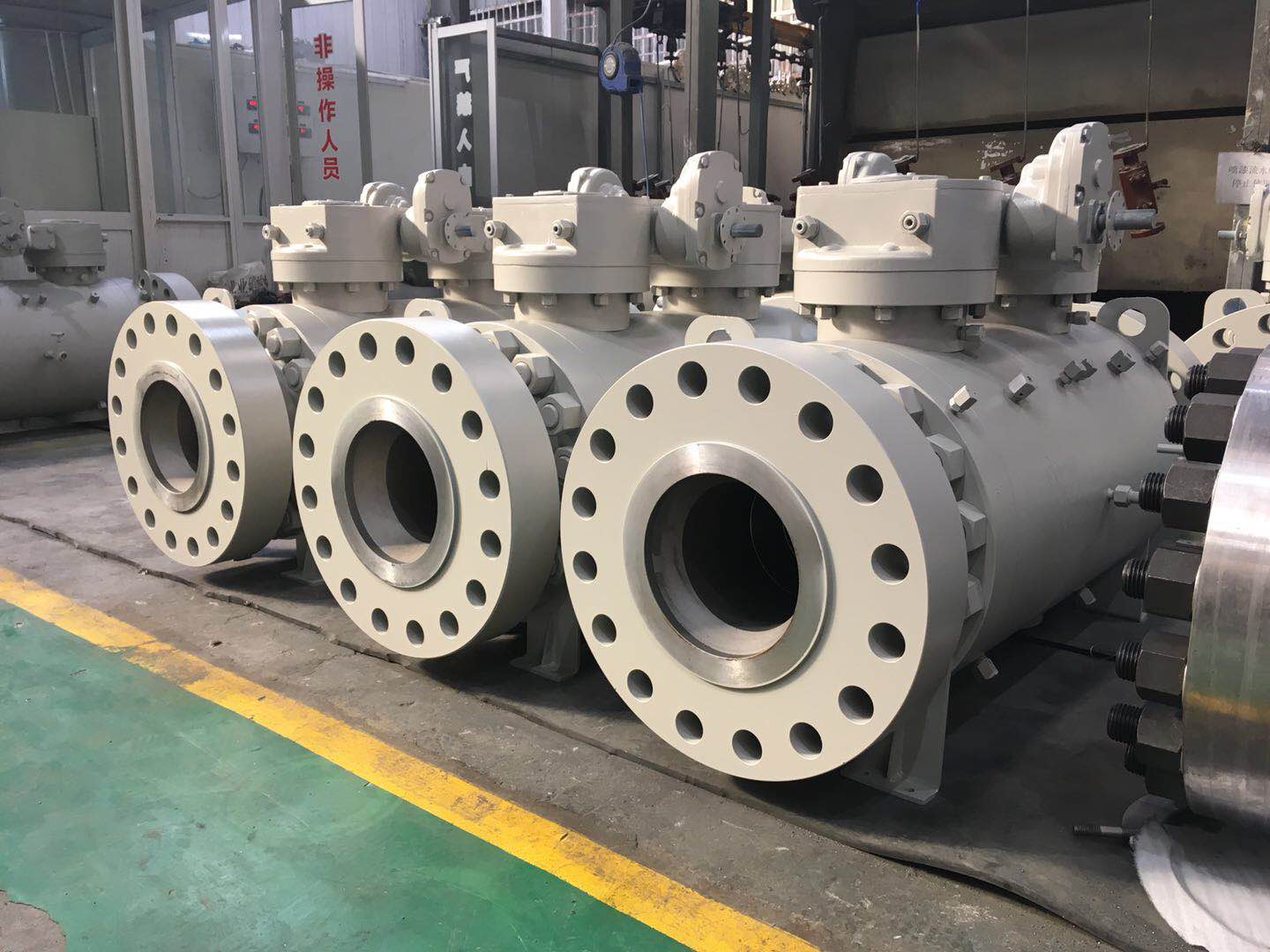

The trunnion type DBB ball valve is the split body 3pcs body and bolted bonnet integral body design, the valve operation according to valve size like hand lever, gear box, pneumatic or electric. Trunnion ball type DBB ball valve has more flow capacity than small size floating type DBB. The two balls integrated in union body as block /isolation valve and a bleed valve for drain or vent the trapped cavity fluid in order to isolation the downstream pipe or prevent any serve medium leakage possibility. DBB ball Valves suitable for pipeline applications where the shut down plant is not affordable but the repair or clean is compulsory, the DBB system which will depressurize the system and isolate a particular section and then can work on it without interfering whole process plant.

nd

DBB ball valves /Double block and bleed ball valves/Double isolation and bleed ball valves use all the design features and benefits of a single DBB trunnion ball valve, but more special in its double isolation performance. The body is generally is manufactured from forged or bar stock material to ensure a high integrity pressure envelope for the valve body (housing).

● Double secure isolation more reliable to safety factor
● Zero leakage performance credibility
● Bleed and depressurize pipeline system
● Less installation space and less weight in pipeline
● Easy one step operation in one union body
● Less cost in material and labor
● Inline repair or maintenance check allowable by not shut down plant,improve plant efficiency
● Fire safe API607
● Anti-static design API608
● Cavity self relief
● Double block and bleed
● Seals: o ring/graphite for general service /graphite for high temperature service/ lip seal+graphite for cryogenic service
● Seat: soft/metal seated for general service, metal seated for high temperature service
● Seat design: Self relieving or double piston effect seats
● Valve seat bi-direction sealing
● Bonnet: extend stem for high temperature/cryogenic service

Emergency grease injection device for soft seated trunnion ball valve. For the valve size about DN150 trunnion ball valve, both the stem and seat has the grease injection device, for size below DN125,the valve chamber has the grease injection device. In case of the seat sealing or stem o ring damaged, the emergency grease injection will seal the damaged area and prevent the medium leakage.

ARAN DBB ball valves could be designed with soft seat or metal-to-metal seat. Metal seated for high temperature or particle medium.

The sealing is reliable and suitable for the severe working conditions.

Application

ARAN has the ranges of DBB ball Valves suitable for Oil & Gas production, processing, transportation, distribution, chemical and petrochemical refining including system isolation, pressure level and flow measurement, instrument drain, chemical injection and sampling for smaller sizes.

ARAN ball valves designated in highest performance and produced in strictest quality. Contact our sales engineer for your specific fluid needs.

appllcation


  • Previous:
  • Next:

  • Special design DBB Trunnion ball valves
    Double secure isolation more reliable to safety factor
    Zero leakage performance credibility
    Bleed and depressurize pipeline system
    Less installation space and less weight in pipeline
    Easy one step operation in one union body
    Less cost in material and labor
    Inline repair or maintenance check allowable by not shut down plant,improve plant efficiency
    Production Range
    Design & MFG code API 6D/ASME B16.34 /ISO17292/ ISO 14313/BS5351
    Face to Face ASME B16.10, EN558
    End Connection FLANGE RF/RTJ ASME B16.5/EN1092-1/GOST 33259; BUTT WELD BW ASME B16.25
    Test & Inspection API 598, API 6D, ISO5208/ISO 5208/EN12266/GOST 9544
    Material Forged steel or Cast steel: carbon steel, alloy steel, stainless steel, duplex steel, bronze, Inconel, Hastelloy, Monel, Incoloy etc.
    Size NPS 2″~24″ (50mm~600mm)
    Pressure ASME Class150~1500LBS (PN16~PN250)
    Operation Manual, Worm Gearbox, Pneumatic actuator, Electric actuator, Hydraulic-electric actuator
    Basic design
    FIRE SAFE API 607
    ANTI STATICS API 608
    Stem feature Anti blow out proof
    Bonnet Construction Bolted bonnet
    Ball type Side entry or top entry or double block & bleed balls
    Bore type Full bore or Reduced Bore
    Optional customize NACE MR0175, MR0103, ISO 15156  compliance
    ISO 5211 MOUNTING PAD Bareshaft
    Limit Switch
    Lock device
    ESDV service suitability
    ISO 15848-1 2015 Low fugitive emission test, ISO15848/SHELL SPE 77/312 Low temperature leakage test
    Non-destructive test (NDT) API 6D, ASME B16.34
    Third party inspection test report
    Documents Documents on delivery
    EN 10204 3.1  MTR Material  test report
    Pressure inspection report
    Visual and dimension control report
    Product warranty
    Valve operation manual
    Product of origin
